Classified shapes (no detailing required) are available on all punches and die buttons.
Ordering Information
Corner Dimensions
Dimensions should be the theoretical sharp corners for shapes C22, C24, C34, C61, and C88. However, some reduction of these dimensions will result from fitting the punch and die button under conditions where the clearance is .0025 inch Δ (.04 mm Δ) or less per side.
Shape Center
Shapes are centered on the punch shanks as shown. Shapes in guide bushings and die buttons are also centered as shown with the exception of shapes C22 and C34. Due to clearance, the P dimension on these shapes will not be centered.
Reflected View - Punches and Guides
The reflected view is used for punches and guides. It is the view as seen in a mirror held below a punch or guide in its operating position. It is the same as a plan view from the head end, in which the point shape is shown dotted. A reflected view is shown with solid lines.
Orientation and Locking
The locking device orientation for headed punches is standard at 0°. Types of locking methods and custom locations are defined with alteration codes.
For Ball Lock punches, the standard ball seat location is at 90°. Alternate locations of 0°, 180° or 270° can be specified at no additional cost. Custom Ball Seat Locations can be specified as BS and degrees counter-clockwise from 0°.
Clearance
Normal grinding methods produce 1 .007 inch (.2 mm) max fillet on the punch and 2 .007 inch (.2 mm) max fillet on the die button with matching corner shape on the die button and punch, respectively. When ordering die buttons, please specify punch dimensions and clearance per side (i).
Check your P&W dimensions to be certain the diagonal G does not exceed the maximum shown.
Duo Tees
C15
C21
C91
C92
Flatted Rounds
C10 (H)
C11 (K)
C33 (V)
C52 (Y)
Keys
C30
C31
C32
C61
C62
Ls
C46
C47
C48
C49
C77
C78
C79
C80
C81
C82
C83
C84
Miscellaneous
C16
C27
C28 (J)
C29
C40
C41
C42
C43
C64
C65
C93
Mono Lobes
C13
C14
C53
C54
C55
C56
C57
C58
Multi Lobes
C17
C18
C19
C20
C59
C60
Polygons
C12 (N)
C34
C35
C37
C38
C39
C85 (Z)
C86
C87
C88
C89
C90
Triangles/Trapezoids
C22
C23
C24
C25
C26
C36
Ts
C44
C45
C66
C67
Us
C50
C51
C68
C69
C70
C71
C72
C73
C74
C75
C76

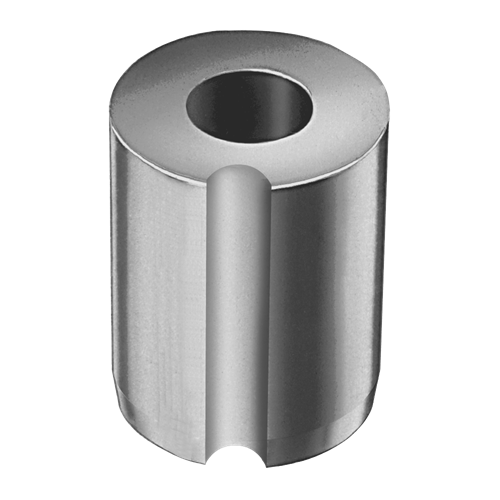

| Component Brand | Press-Fit |
|---|---|
| Measure | Metric |
| Component Type | Tapered Relief |
| Punch Shape | Classified Shapes |
Classified shapes (no detailing required) are available on all punches and die buttons.
Ordering Information
Corner Dimensions
Dimensions should be the theoretical sharp corners for shapes C22, C24, C34, C61, and C88. However, some reduction of these dimensions will result from fitting the punch and die button under conditions where the clearance is .0025 inch Δ (.04 mm Δ) or less per side.
Shape Center
Shapes are centered on the punch shanks as shown. Shapes in guide bushings and die buttons are also centered as shown with the exception of shapes C22 and C34. Due to clearance, the P dimension on these shapes will not be centered.
Reflected View - Punches and Guides
The reflected view is used for punches and guides. It is the view as seen in a mirror held below a punch or guide in its operating position. It is the same as a plan view from the head end, in which the point shape is shown dotted. A reflected view is shown with solid lines.
Orientation and Locking
The locking device orientation for headed punches is standard at 0°. Types of locking methods and custom locations are defined with alteration codes.
For Ball Lock punches, the standard ball seat location is at 90°. Alternate locations of 0°, 180° or 270° can be specified at no additional cost. Custom Ball Seat Locations can be specified as BS and degrees counter-clockwise from 0°.
Clearance
Normal grinding methods produce 1 .007 inch (.2 mm) max fillet on the punch and 2 .007 inch (.2 mm) max fillet on the die button with matching corner shape on the die button and punch, respectively. When ordering die buttons, please specify punch dimensions and clearance per side (i).
Check your P&W dimensions to be certain the diagonal G does not exceed the maximum shown.
Duo Tees
C15
C21
C91
C92
Flatted Rounds
C10 (H)
C11 (K)
C33 (V)
C52 (Y)
Keys
C30
C31
C32
C61
C62
Ls
C46
C47
C48
C49
C77
C78
C79
C80
C81
C82
C83
C84
Miscellaneous
C16
C27
C28 (J)
C29
C40
C41
C42
C43
C64
C65
C93
Mono Lobes
C13
C14
C53
C54
C55
C56
C57
C58
Multi Lobes
C17
C18
C19
C20
C59
C60
Polygons
C12 (N)
C34
C35
C37
C38
C39
C85 (Z)
C86
C87
C88
C89
C90
Triangles/Trapezoids
C22
C23
C24
C25
C26
C36
Ts
C44
C45
C66
C67
Us
C50
C51
C68
C69
C70
C71
C72
C73
C74
C75
C76
- Component Brand:
- Press-Fit
- Measure:
- Metric
- Component Type:
- Tapered Relief
- Punch Shape:
- Classified Shapes
