Lamina Guided Retainers - Transforming Precision Stamping

Precision and strength are more important than ever in metal stamping applications, where minimal downtime is crucial.

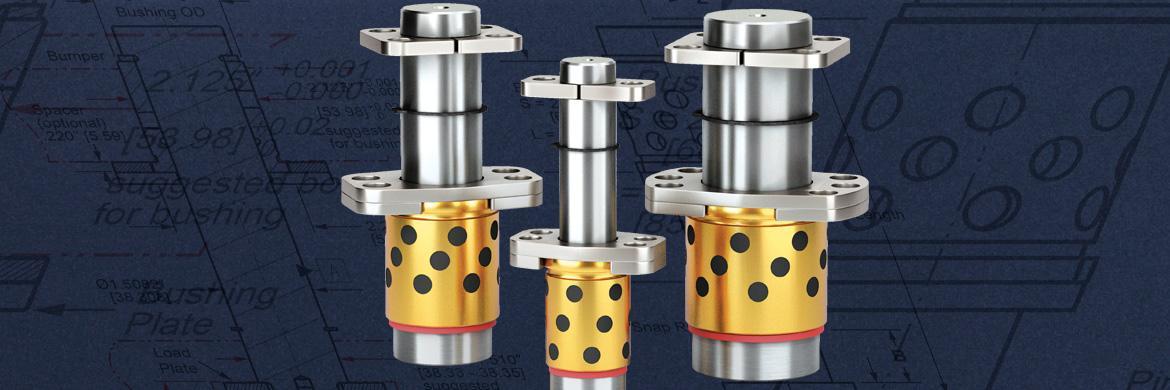

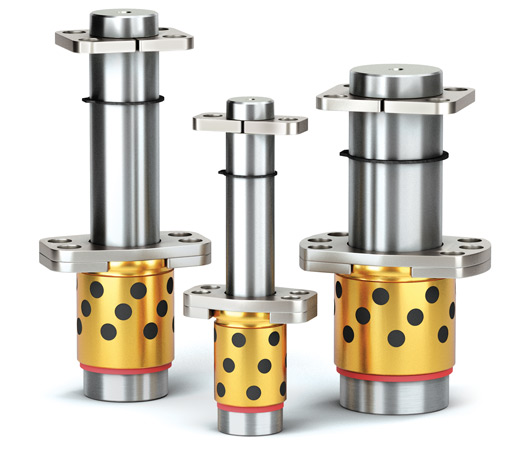

Lamina Guided RetainersDayton Lamina's new line of Guided Retainers offer many improvements for traditional metal stamping dies.  Industry leader Dayton Lamina has been making guide components for 100 years. Our new line features superior guidance, with a one-piece pin and solid aluminum bronze bushing with graphite plugs. These deliver longer life and eliminate the need to add extra pins and bushings, reducing component and machining costs.

Lamina Guided Retainer assemblies occupy much less space in the die than traditional pin, bushing, and spool pad retainer combinations. You can guide and retain the pressure pad or stripper plate in progressive stamping dies, or use on lifter rails. Machining is only necessary on one side of the pad, reducing tool cost and the potential for additional setup errors.

Removing the forces off the screws, and onto the load plates allows for superior loads and strength at the pad. The hardened load plates provide greater strength at the pad compared to socket head cap screws, meaning no need to check for loose screws and no broken screws falling into the tool. This design is complemented by versatile mounting styles, for design flexibility and additional room in the die working area.

It's easy to replace your existing components with Lamina Guided Retainers, with some machining required in the pad for the load plates and no machining is required in the die plates. Furthermore, there are no supply chain worries. The product line is manufactured in our Michigan plant for fast turnaround times.

View Products

The Lamina Advantage

  • Tight Assembly Tolerances
  • Superior guiding, with the same guide pin and bushing clearance as traditional pins and bushings which gives greater positional accuracy
  • Strength at the Pad
    • Accomplished with hardened steel load plates
    • No Socket Head Cap Screw threaded into the pin
    • Added Strength at the Pin due to unique one-piece construction
  • Bronze Graphite-Plugged Bushing
    • Longer life
    • Self-lubricating
    • No galling
  • Greater Shear Load capabilities from axial loads and side loads due to pin engagement in pad and hardened steel load plates. We do not rely on socket head cap screws to absorb the loads in the pad.
  • Optional Mounting of Bushing on either side of plate for additional clearance, solving design issues
  • Now available in five diameter sizes: 1.0 Inch, 1.25 Inch, 1.5 Inch, 1.75 Inch, and 2.0 Inch.

How It Works

With Lamina Guided Retainers, screws are not directly mounted to the pins. This eliminates the threat of fasteners backing out from excess harmonics, a common problem. Our hardened load plate design is superior to properly torqued socket head cap screws.

Torsional forces also contribute to fastener failure. Dayton Lamina designed the Guided Retainer to absorb excess forces through the body of the pin and the load plates. The pin is engaged through the bored hole in the pad, providing additional protection against those torsional loads.

Dayton Lamina's competitive edge comes down to both the durability of its guiding components and the tight tolerances used to manufacture them. The result is a much more precision fit assembly. The industry shift to putting pilots in pads, instead of being mounted to the shoe, has inadvertently required pads to withstand additional forces that were not seen when pads were retained with a simple spool. Mishits have a much more detrimental effect when pilots do not find their intended pickup hole in the strip.

The result? The Lamina Guided Retainer assembly design improves the guiding, reduces tool maintenance, and reduces the overall tooling costs.

Lamina Guided Retainers in Action

Portland Products, in Portland, Michigan supplies the automotive and office furniture industries.  After years of struggling with an unreliable stamping tool, the company turned to Dayton Lamina's innovative solution.

The problem was straightforward. During production, forces caused the mounting fasteners holding the pad to the original guided keeper pins to fail, leading to the broken screw heads falling into the tool and interfering with the parts. Bolts had to be routinely tightened between shifts and guide pin heads continued to break, meaning re-inspection after every stamping, damage to the tool, and unexpected downtime. This amounted to roughly an hour of downtime on average for each five-coil production run with operators standing idle while the toolroom addressed the problem.

Lamina Guided RetainerCompetitor's guided keeper

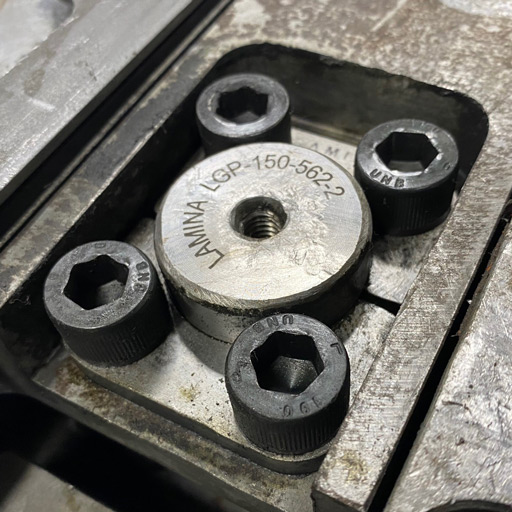

Dayton Lamina's improved design provides more strength with a load plate supporting the pin.

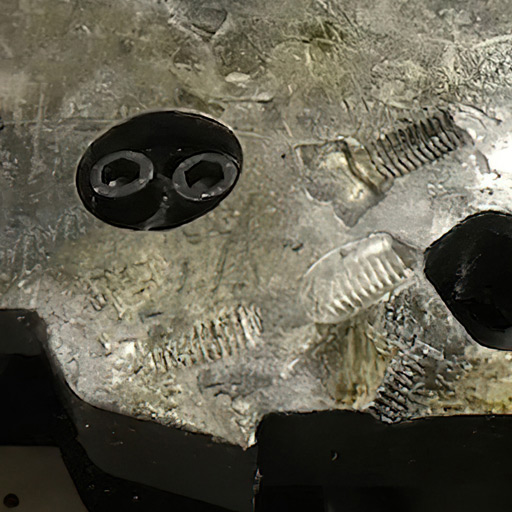

Competitor's vulnerable design allows screws to loosen and fall into the die, damaging product and other tooling.

"We had an increase in unplanned downtime, and toolmakers having to make in-press adjustments versus having the tool remain where it's supposed to be and making a repeatable part," said Dave Carey, toolroom manager at Portland Products. "When we run at 30 parts a minute, that adds up pretty fast." That downtime comes with an expensive price tag when you add up scrapped parts and added quality inspections, coupled with other numerous tasks when a tool goes down.

With a few modifications, Portland was up and running with the new Lamina Guided Retainers. "The tool is fully functional and has yet to break a bolt head," said Carey of Portland Products. For him, being involved in the product testing process was instrumental to landing on a solution.

By the Numbers

Independent tests have proven that these designs have superior static and sheer load ratings due to axial loads. The table below shows the areas that have shown the most failures in the field. Other designs in the field have failed at the socket head cap screws in the pad. The results show how much better we are over our competition. Real-world test results at Portland Tool far exceeded the competition.

Static Load Test for Lamina Guided Retainers

Product DetailsLamina Guided RetainersCompetitor
1.50" DiameterFailure at 74,940 Lbs.
  • Failure was at the bushing retainer screws.
  • Bushing mounting plate had started to bow, causing screws to fail.
Failure at 49,422 Lbs.
  • Failure was at the bushing retainer screws.
  • Bushing mounting plates had bowed and started to separate.
1.50" Diameter, no bushingFailure at 105,816 Lbs.
  • Failure was at the pad retainer plates.
  • Load plates sheared.
Failure at 56,000 Lbs.
  • Failure was at the 2 pad retainer screws
  • Two 10mm SHCS failed at the pad end.
2.00" DiameterFailure at 97,648 Lbs.
  • Failure was at the bushing retainer screws.
  • Bushing mounting plate had started to bow, causing screws to fail.
Failure at 73,594 Lbs.
  • Failure was at the bushing retainer screws.
  • Bushing mounting plates had bowed and started to separate, causing screws to fail.
2.00" Diameter, no bushingFailure at 138,806 Lbs.
  • Failure was at the pad retainer plates.
  • Load plates sheared.
Failure at 102,224 Lbs.
  • Failure was at the pin head. Head broke off.

Looking Forward

As automakers continue to push for lighter vehicles, manufacturers must adapt to ever-changing materials. For stamping companies, this means designing and building tools for steel that is harder and less malleable than other steels. In this case, the HSLA080 3mm steel used by Portland Products put additional strain on the pad, causing issues during production.

Today's market is constantly changing to meet customer demands. To keep up, you need a product with better performance. You need one that's less expensive for the life of the tool. You need Lamina Guided Retainers.
