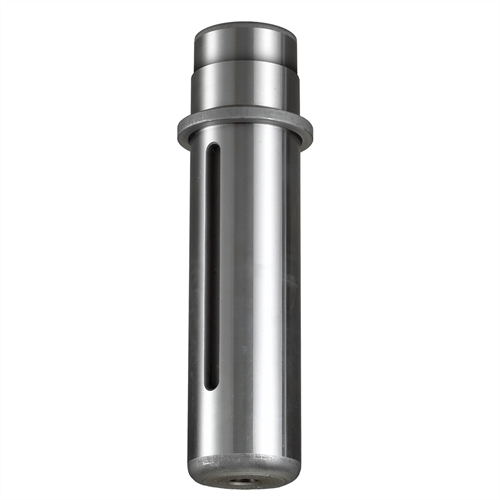

Designed to expedite die repair, these Ball Bearing flanged guide posts offer:
- Large savings in maintenance, repair costs and downtime
- Wide variety of sizes
- Long, trouble-free production runs
- Highest quality workmanship and materials
- D2 and D4 dimensions are finished ground
Superior Reference - 332-2024
Dayton Lamina is not associated in any way with Superior Die Set Corporation
| Brand | Lamina |
|---|---|
| Superior Reference | 332-2024 |
| D1 | 2.5032/2.5030 |
| Measure | Inch |
| D2 | 2.5000/2.4998 |
| Pin Diameter (in) | 2.50 |
| D3 | 3.00 |
| Length (in) | 7.940 |
| D4 | 2.4980/2.4978 |
| L2 | 2.500 |
| L3 | 1.940 |
| L5 | 6.00 |
| Slot Length | 3.500 |
- Brand:
- Lamina
- Superior Reference:
- 332-2024
- D1:
- 2.5032/2.5030
- Measure:
- Inch
- D2:
- 2.5000/2.4998
- Pin Diameter (in):
- 2.50
- D3:
- 3.00
- Length (in):
- 7.940
- D4:
- 2.4980/2.4978
- L2:
- 2.500
- L3:
- 1.940
- L5:
- 6.00
- Slot Length:
- 3.500
