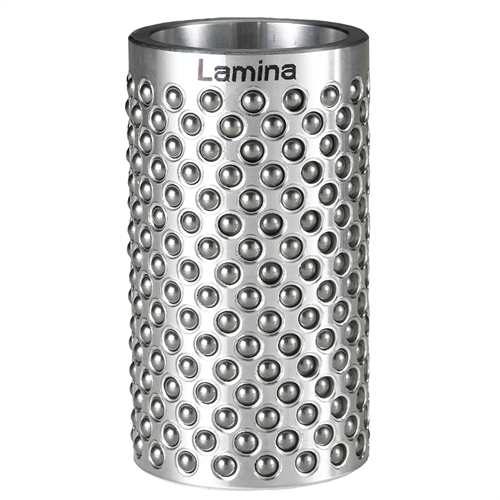

Lamina ball-bearing retainers (AR1) are made of a heat-treated aluminum alloy that combines lightness and strength.
Each retainer is quality inspected for dimensional tolerance and all burrs are removed prior to ball insertion.
Ball bearings are of the highest quality ISO 3290 Grade 24, continually inspected to meet our exacting tolerance.
After the ball bearings have been inserted into the retainer, they are then staked using Lamina’s unique method that allows free movement with maximum security.
After staking, the retainers are then scrubbed to remove all metal particles that could cause accelerated tracking and grooving in the post and bushing.
Ball bearings are placed in retainers in an off-line radial pattern that offers optimum life in high or low speed presses.
Ball-bearing retainers are fastened to the guide post by means of a set screw and slot in guide post and are interchangeable with other manufacturers using this method.
Superior Reference - 335-1212
Dayton Lamina is not associated in any way with Superior Die Set Corporation
| Brand | Lamina |
|---|---|
| Superior Reference | 335-1212 |
| Measure | Inch |
| Pin Diameter (in) | 1.50 |
| Length (in) | 3.000 |
| L2 | 0.250 |
| Ball Bearing Diameter | 0.187 |
| Weight (lbs) | 0.3500 |
- Brand:
- Lamina
- Superior Reference:
- 335-1212
- Measure:
- Inch
- Pin Diameter (in):
- 1.50
- Length (in):
- 3.000
- L2:
- 0.250
- Ball Bearing Diameter:
- 0.187
- Weight (lbs):
- 0.3500
